- Turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android
- NESDR SMArt RTL-SDR v5 can be used for the reception of broadcast AM radio, broadcast FM radio, shortwave radio, CB radio, public security radio, trunked radio, air traffic control, ACARS (plane-ground communications), ADS-B (plane tracking), AIS (ship tracking), POCSAG (pagers), NOAA and GOES weather satellites (weather images), weather balloons, radiosondes, DAB radio, DVB-T video, Inmarsat, Iridium, and so much more!
- The best-performing low-cost RTL-SDR available anywhere! Compared with RTL-SDR v3, HF SNR is improved by up to 15dB, VHF & UHF SNR is improved by up to 6dB, tuning accuracy is improved by an average of 4x, and the frequency range is expanded all the way down to 100kHz
- v5 has a frequency capability of 100kHz to 1.75GHz and up to 3.2MHz of instantaneous bandwidth. HF reception below 25MHz is accomplished with direct sampling and requires a suitable antenna. We recommend using a Balun One Nine to make a DIY long wire or dipole antenna (sold separately, product ID B08HGSYB7R or B00R09WHT6)
- Though the direct sampling implementation of NESDR SMArt v5 is much better than any other RTL-SDR, we still recommend using an upconverter like the Ham It Up for a more fulfilling HF experience (sold separately, product ID B076CYK8XZ)
- Your purchase includes a NESDR SMArt v5 RTL-SDR, a magnetic antenna base with a 2m (6.5') RG-58 feed cable, and 3 different antenna masts for UHF and VHF operation, including a variable-frequency telescopic antenna
- Proudly built by Nooelec in the USA and Canada! Full 2-year product warranty and product support through our support portal at https//support.nooelec.com
- Full datasheet available:
This premium RTL-SDR was designed, developed and fabricated by Nooelec in the USA and Canada. It allows you to turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android.
With a much narrower form factor than RTL-SDR v3, you can run multiple NESDR SMArt v5 side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi
For full product specifications, please visit our website at nooelec.com, or download the datasheet:

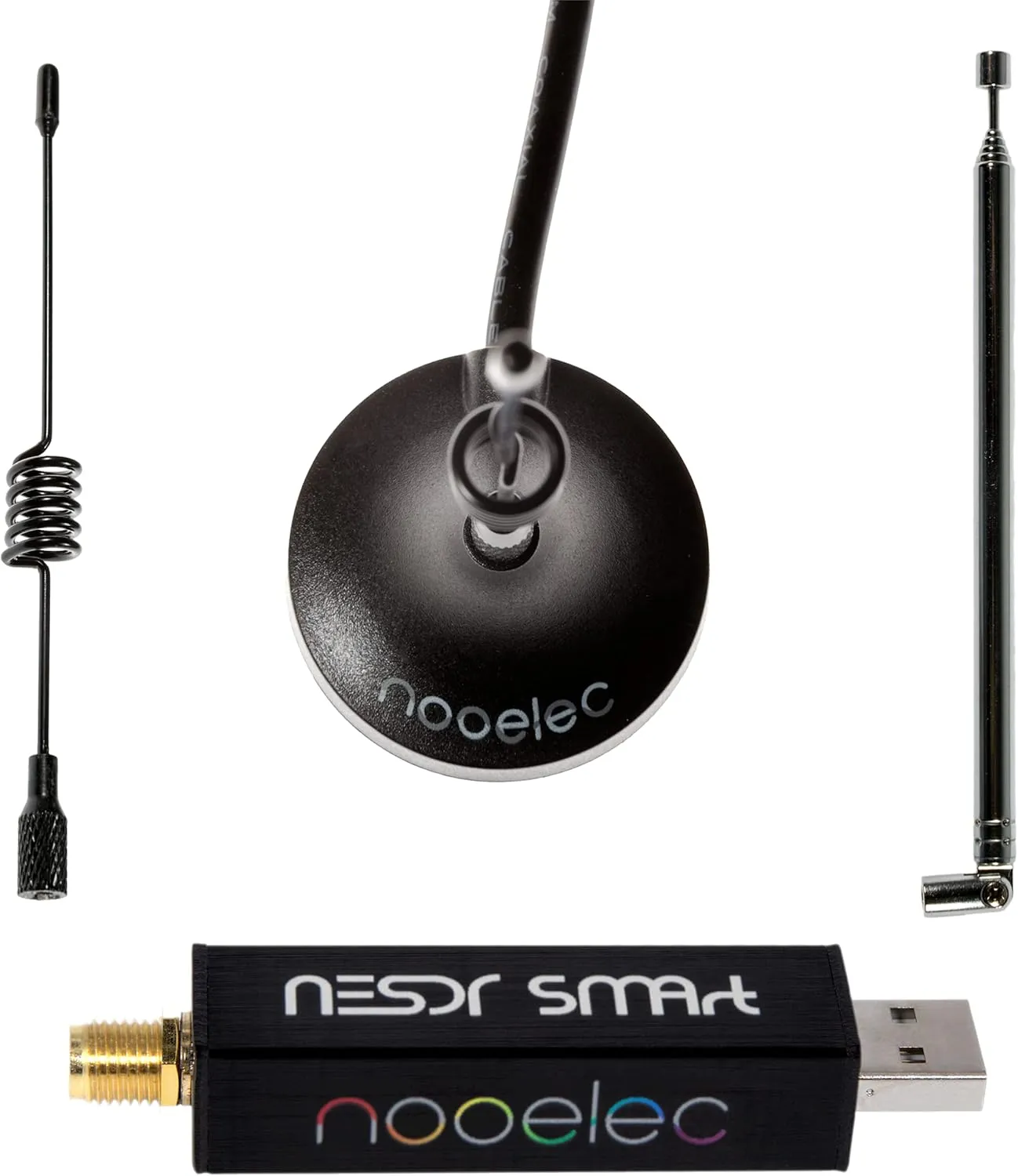

Included:
✔ NESDR SMArt SDR in black brushed aluminum enclosure
✔ Antenna base w/ 2m RG58 cable
✔ Telescopic antenna mast (variable frequency)
✔ 433MHz (ISM) antenna mast (fixed frequency)
✔ UHF antenna mast (fixed frequency)
SDR Specifications:
✔ RTL2832U Demodulator/USB interface IC
✔ R820T2/R860 tuner IC
✔ 0.5PPM, ultra-low phase noise TCXO
✔ RF-suitable voltage regulator
✔ Shielded primary inductor
✔ Integrated custom heatsink
✔ Female SMA antenna input
✔ High-quality black brushed aluminum enclosure
Antenna Specifications:
✔ Wide base with super-strong magnet within base for easy mounting
✔ Low-loss RG58 feed cable
✔ 2m (6.5') cable, twice as long as most low cost SDR antennas
✔ Male SMA connector for direct connection to the SDR or our other SMA-connected accessories
TCXO Specifications:
✔ Frequency stability: 0.5PPM (max)
✔ Phase noise @1kHz offset: -138dBc/Hz (or better)
✔ Phase noise @10kHz: -150dBc/Hz (or better)
✔ Phase noise @100kHz: -152dBc/Hz (or better)
